Mark Levinson Nº5805 Integrated Amplifier


por: R$ 49.990,00
em até 12x no cartão
Boleto Bancário (parcela única)
R$ 49.990,00
Disponibilidade em estoque: Consulte-nos.
Previsão de entrega após faturamento (emissão da nota fiscal): de 3 a 5 dias uteis, consulte.



1x no cartão
 R$ 49.990,00
2x no cartão R$ 26.199,76
3x no cartão
 R$ 17.711,46

5x no cartão
 R$ 10.941,81
6x no cartão R$ 9.248,98
10x no cartão
 R$ 5.680,86
4x no cartão R$ 13.506,05



12x no cartão R$ 4.777,79



Vídeo desse modelo

Mark Levinson Nº5805 Integrated Amplifier
Fabricante: Mark Levinson - (• Ver todos os produtos da marca Mark Levinson )
№ 5805
Integrated Amplifier for Digital and Analog sources

- Powerful Amplification

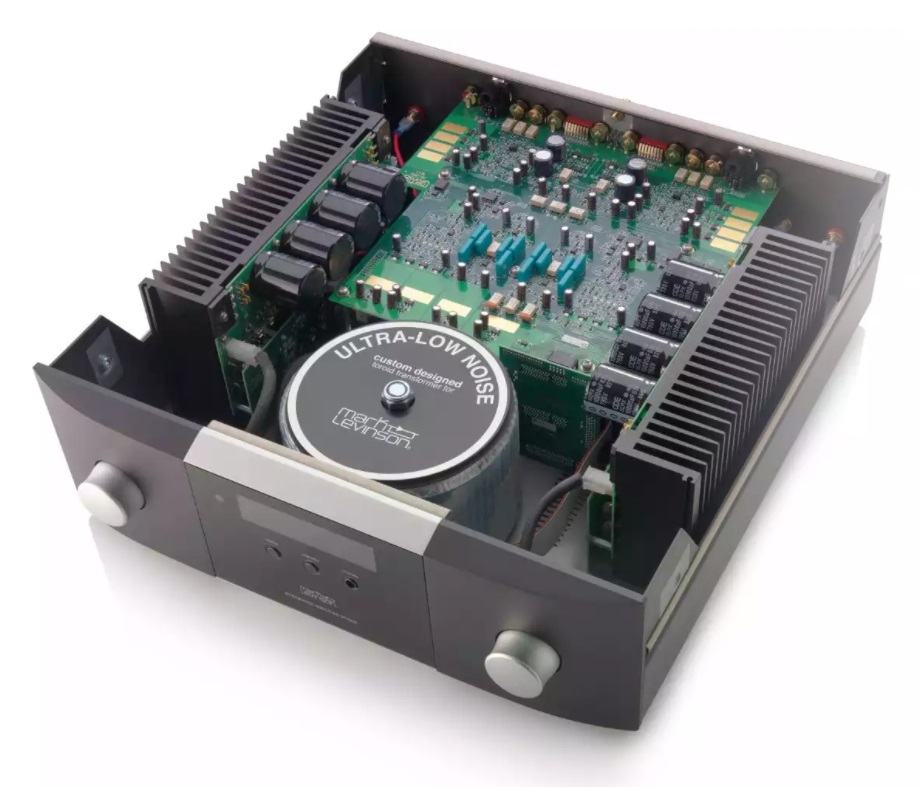

Fill your home with rich, enveloping waves of sound. This high-end integrated amplifier contains a highly capable power supply (500+ VA toroidal transformer) that allows it to provide the right amount of power to your loudspeakers — and deliver premium audio performances without distortion.

- Detailed Digital Audio
Discover new details in your digital music, from hidden harmonies to whispered cues. The № 5805 includes a premium Precision Link II Digital-to-Analog Converted (DAC) that accurately reproduces audio signals and minimizes noise, so you can experience outstanding audio quality and connect to your music on a deeper level.

- Extraordinary Analog Audio
Mark Levinson’s proprietary Pure Path circuit design maximizes audio signal integrity with exceptional accuracy and sonic clarity from this high-end integrated amplifier with a premium phono pre-amp. The result? Unmatched sound quality that captures the nuances of your entire analog music collection.

Mark Levinson № 5805: Integrated Amplifier!

Digital Inputs
1 x USB 2.0, 1 x coaxial S/PDIF, and 2 x optical S/PDIF
192kHz/32 bit PCM and DSD 5.6 capability
Bluetooth audio input including AptX-HD support
MQA decoding and rendering ability
Analog Inputs
1 x balanced XLR stereo, 2 x RCA stereo, 1 x RCA Phono (MM/MC)
HT processor pass-thru mode
Outputs
Line outputs: 1 x RCA stereo (variable)
Headphone output: 1 x 1/4-inch/6.35 mm jack (front panel)
Speaker outputs: 2 pairs high-current binding posts
Control
Control ports: Ethernet (RJ45), RS-232 (DB9), 12V trigger input/output and IR input (3.5mm jack)
Webpage setup, configuration import/export, software updates
Included handheld IR remote control
Control modules for third-party automation
Other
EuP compliant / low-power standby
All-new Nº 5000 series industrial design
Designed, engineered and precision-crafted in the USA
Packaged and sold individually

ANALOG LINE STAGE
Line Input Impedance: Balanced (XLR): 20kΩ; Single-ended (RCA): 10kΩ
Volume Control: Balanced; voltage mode; digitally-controlled resistor network
Gain: 8.5dB maximum
Output Impedance: 55Ω
Output Overload: >4.5V RMS
Frequency Response: 20Hz to 20kHz, ±0.03dB; <2Hz to 210kHz, +0.1/–3dB (At unity gain volume setting)
Total Harmonic Distortion: <0.01%,1kHz; <0.03%,20 kHz; 2V RMS output (At unity gain volume setting)
Signal-To-Noise Ratio: >96dB (20Hz to 20kHz, A-weighted); >93dB (20Hz to 20kHz, wideband, unweighted) (Referred to 2V RMS output, unity gain volume setting)
Input Sensitivity: 53mV RMS at line input for 2.83V RMS at speaker output, maximum volume setting
System Gain: 34.5dB, line input to speaker output, maximum volume setting

PHONO STAGE
Riaa Frequency Response: 20Hz to 20kHz, ±0.3dB
Infrasonic Filter: Selectable; 20Hz, 1st order (6dB/octave)

MOVING-MAGNET MODE
Input Resistance: 47kΩ
Input Capacitance: Selectable; 20, 70, 120, 170pF
Gain: 39dB at 1kHz
Total Harmonic Distortion: <0.01%, 1kHz, 2V RMS output; <0.05%, 20kHz, 2V RMS output
Signal-To-Noise Ratio: >90dB (20Hz to 20kHz A-weighted, referred to 2V RMS output); >78dB (20Hz to 20kHz, wideband, unweighted, referred to 2V RMS output)
Maximum Input Level: >190mV at 1kHz; >1.6V at 20kHz

MOVING-COIL MODE
Input Resistance: Selectable, 37Ω to 1000Ω
Gain: 69dB at 1kHz
Total Harmonic Distortion: <0.01%, 1kHz, 2V RMS output; <0.06%, 20kHz, 2V RMS output
Signal-To-Noise Ratio: >71dB (20Hz to 20kHz A-weighted, referred to 2V RMS output); >66dB (20Hz to 20kHz, wideband, unweighted, referred to 2V RMS output)
Maximum Input Level: >6.5mV at 1kHz; >19mV at 20kHz

DIGITAL-TO-ANALOG CONVERTER STAGE
Output Voltage: 5.7V RMS at maximum volume/full scale (0dBFS)
Frequency Response: 20Hz to 20kHz, +0/–0.02dB (192kHz/24 bit signal); 20Hz to 20kHz, +0/–0.05dB (44.1kHz/16 bit signal)
Total Harmonic Distortion: <0.0025%, 20Hz to 20kHz,at 3V RMS output (192kHz/24 bit signal); <0.003%, 20Hz to 20kHz, at 3V RMS output (44.1kHz/16 bit signal); <0.006%, 90kHz, at 3V RMS output (192kHz/24 bit signal)
Signal-To-Noise Ratio: >100dB (20Hz to 20 kHz, 192kHz/24 bit signal, A-weighted); >98dB (20Hz to 20 kHz, 192kHz/24 bit signal, wideband, unweighted; >94dB (20Hz to 20 kHz, 44.1kHz/16 bit signal, A-weighted); >92dB (20Hz to 20 kHz, 44.1kHz/16 bit signal, wideband, unweighted) ( referred to 2V RMS output)
Sample Rates/Bit Depth: PCM: 32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, or 384kHz; up to 32 bits; DSD: Native or DoP; single, double, or quad speed (2.8, 5.6, or 11.2MHz)
Digital Processing: Full MQA decoding; PCM: Seven user-selectable digital filter settings; user-selectable up-sampling to 352.8/384kHz; DSD: Four user-selectable digital filter settings

HEADPHONE OUTPUT
Total Harmonic Distortion: <0.04%, 20Hz and 1kHz, 2V RMS output, 30Ω load; <0.10%, 20kHz, 2V RMS output, 30Ω load
Output Overload: >3.3V RMS, 30Ω load
Signal-To-Noise Ratio: >91dB (20Hz to 20kHz, A-weighted, referred to 2V RMS output); >87dB (20Hz to 20kHz, wideband, unweighted, referred to 2V RMS output
Output Impedance: <2.5Ω, 20Hz to 20kHz

AMPLIFIER SECTION
Frequency Response: <2Hz to 20kHz, +0/–0.2 dB; <2Hz to 100kHz, +0/–3dB
Signal-To-Noise Ratio: >103dB (20Hz to 20 kHz, A-weighted); >100dB (20Hz to 20 kHz, wideband, unweighted) Total Harmonic Distortion + Noise: <0.035% at 1kHz, 125W, 8Ω; <0.18% at 20kHz, 125W, 8Ω
Output Power: 125W RMS per channel at 8Ω, 20Hz to 20kHz
Output Impedance: <0.098Ω, 20Hz to 10kHz; <0.11Ω at 20kHz
Damping Factor: >82, 20Hz to 10kHz; >72 at 20kHz (All referred to 8Ω)

GENERAL

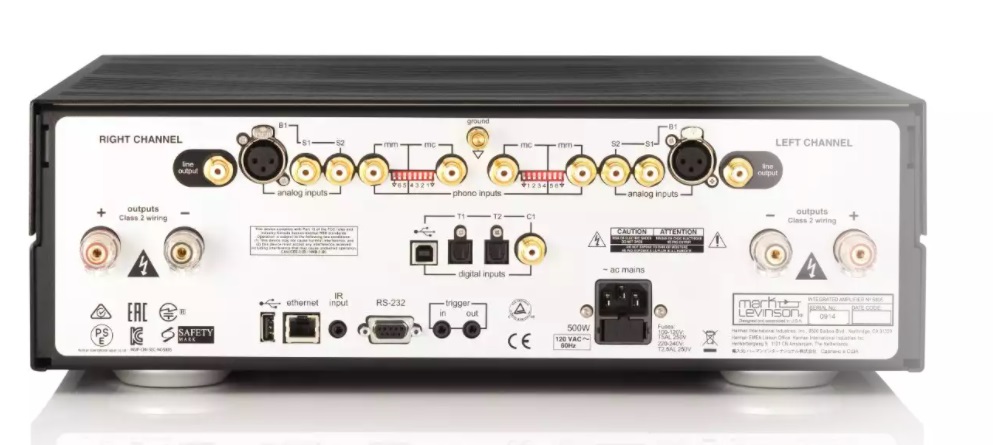

Analog Input Connectors: 1 pair balanced line-level inputs (XLR); 2 pairs single-ended line-level inputs (RCA); 1 pair single-ended moving-coil phono inputs (RCA); 1 pair single-ended moving-magnet phono inputs (RCA)
Digital Audio Connectors: 2 optical digital inputs (Toslink); 1 asynchronous USB digital input (USB-B); №5805: 1 coaxial digital S/PDIF input (RCA); №5802: 2 coaxial digital S/PDIF input (RCA); №5802: 1 balanced digital AES/EBU input (XLR)
Output Connectors: 1 pair single-ended line-level outputs (RCA); 2 pairs loudspeaker outputs (High-current binding posts with banana sockets; accept spade lugs with ¼"/6.3mm spacing up to ⅛"/3mm thick)
Control Connectors: 1 RS-232 port (DB9 connector); 1 IR input (⅛”/3.5mm phone jack); 1 programmable 12V DC trigger output (⅛"/3.5mm phone jack), 100mA maximum; 1 programmable 12V DC trigger input (⅛"/3.5mm phone jack); 1 Ethernet port (RJ-45 connector)
Mains Voltage: 100VAC, 115VAC, or 230VAC, factory set
Power Consumption:
Standby, “Green” mode: <0.4W
Standby, “Power Save” mode: 7W
Standby, “Normal” mode: 70W;
Power on, quiescent: 120W;
Power on, both channels at ⅛ rated power: 240W;
Dimensions/Weight (Unit): Height: 5.72"/145mm; Height without feet: 5.25"/133mm; Width: 17.25"/438mm; Depth: 19.98"/507mm; Weight: 62 lbs/28.1kg
Dimensions/Weight (With Packaging): Height: 13.0"/330mm; Width: 24.0"/610mm; Depth: 28.0"/711mm; Weight: 73 lbs/33.0kg;
Preço: R$ 49.990,00
